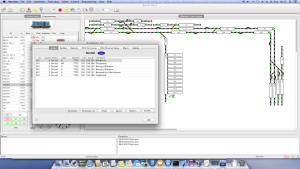

Layout: "Plan-F"

Rocrail Project in a Nutshell

Rocrail is an Innovative Model Railroad Control System that runs on Linux, Mac OS X, Raspberry Pi and Windows. Written in C/C++, it is based on the wxwidgets.org_images_blocks2.jpgwxWidgets class library, and is Open Source.

Rocrail supports many languages, including English, German, Dutch, French, and many more. Check if yours is also supported.

Rocrail can control a model train layout from one or more computers. Running trains manually or automatically is fully configurable. Many have found that running some of the trains on the layout automatically while operating others manually is most enjoyable.

Rocrail consists of two programs; The Rocrail Server and the Rocview Client. These programs communicate with each other using TCP/IP, and they do not need to be on the same computer.

Due to Rocrail's client-server architecture, control of a layout from any computer or mobile device on a home network or over the Internet is possible.

Rocrail runs on a computer connected to the layout by one of the standard computer interface setups, and supports many controllers. Click supported Command Stations for a list of currently supported Command Stations.

Rocview can also be used standalone to plan, create, and edit layouts without a physical connection to the layout.

Fancy features of Rocrail

  • Modular Layout support.
  • R2Rnet network support for roaming trains.
  • Unlimited number of sectional track diagrams.
  • Supports many Command Stations
  • Manual controlled signals in automatic mode.
  • User defined actions to control anything.
  • Fiddle Yard control with shared sensors and FiFo.
  • Staging Block to use to full capacity of available space.
  • Critical section support to avoid dead locks.
  • Schedules for a realistic train flow.
  • Random automatic control.
  • BBT: Block Brake Timer. (AKA “Learning to brake”.)
  • Build in Digital Direct Control Station.
  • Operates an unlimited number of digital systems simultaneously.
  • Only one feedback contact per block required.
  • Runs on Linux, Apple Mac OS X and Microsoft Windows.
  • Multilanguage support.
  • Sensor simulation for testing without a connected model railroad.
  • Symbol themes in SVG.
  • Extremely well supported in our Forum.
  • iRoc: the ultimate iPhone and iPod Touch throttle/client.
  • andRoc: the Android throttle/client.
  • RocJ: the Java client for Pads and MIDs.
  • Dynamic text for 'espeak' announcements.
  • Track plan analyzer for finding and creating routes.
  • padRoc: the ultimate iPad client.
  • Direct controlling Command Stations with RC-CAB using Ethernet interfaces.
  • Controlling your layout with RocNetNodes running on the economically priced Raspberry Pi1).


Trademarks

The name “Rocrail” and the associated logo is our trademark.
Both are official registered in Germany and the Benelux.


Copyright

All images and text on this web site are Copyrighted ©; All rights reserved.
All of the source code, firmware, hardware, documentation and auxiliary files distributed by the Rocrail project are copyright; All rights reserved. See the next section for information on the usage license.


License

This software is distributed freely under the GNU GENERAL PUBLIC LICENSE V3. If you include portions of this software in other programs, then those programs must also be distributed freely in their entirety under the GNU PUBLIC LICENSE.
The Wiki documentation underlies the GNU Free Documentation License.
There is NO WARRANTY, to the extent permitted by law.

We would highly appreciate if Club and Commercial usage is reported back to us.

The Rocrail project offers Software and DIY Hardware

Freedom of choice, compatible with GCA50/CANGC2 and running on a Raspberry Pi.MERG CBus; The Loconet open source alternative based on CAN.

  • The software supports many commonly used Control Stations and even software emulation over RS232/USB.
  • The Hardware is none SMD and therefore easy to build.
  • Professional boards and kits can be ordered here at fair prices:


Rocrail is People

BBQ 7st roundtable Solingen Aug. 2011.

  • There is a Forum where Rocrail Users can post questions, get answers, and just talk about their experiences using Rocrail.
  • While the main language of Rocrail is currently English, there is an International Community from many Countries, and all are welcome.
  • Round tables are organized at regular base.




We hope you enjoy using Rocrail. Please note that this is an open-source effort. If you feel the code could use new features or fixes, or the documentation can be improved, please get involved and lend us a hand! The Rocrail team welcomes your participation. Let us know what you think! Post your feedback in the Rocrail Forum.

To all manufacturers of commercial model railroad software: Do not lurk; Try to be innovative and creative by yourself!
1) “Raspberry Pi” is a trademark of the Raspberry Pi Foundation.
