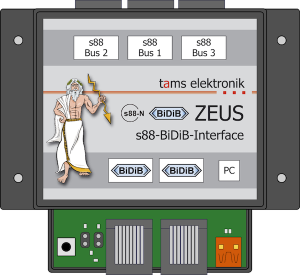

Tams Zeus
HSI mode
(internal JP3 closed ; jumper installed)
- Type: RS232
- Baudrate: 9600
- modules connected to "Bus 1" (middle connector on tams) have to be configured as "s88 chain left"
- modules connected to "Bus 2" have to be configured as "s88 chain middle"
- modules connected to "Bus 3" have to be configured as "s88 chain right"
Chains

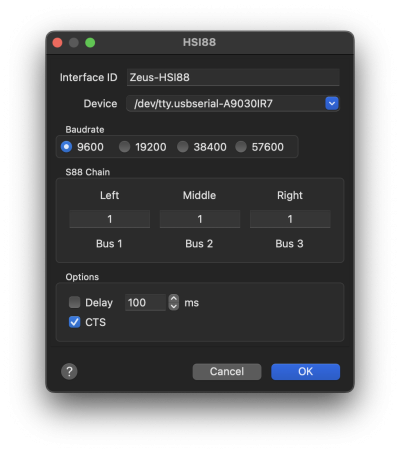

The table shows the different assignment of the S88 chains from HSI88 (LDT) and ZEUS (Tams) to the settings in the dialog.
| HSI88 dialog | |||
|---|---|---|---|
| S88 Chain | left | middle | right |
| HSI88 (LDT) | LEFT | MIDDLE | RIGHT |
| ZEUS (Tams) | Bus 1 middle | Bus 2 left | Bus 3 right |

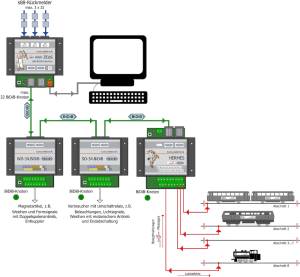

BiDiB mode
(internal JP3 open ; no jumper installed)
Setup

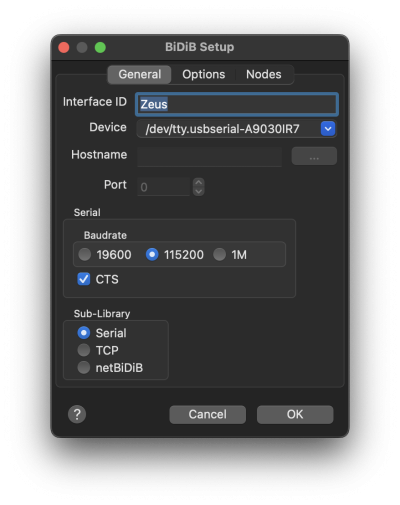

The Zeus can be added as BiDiB controller with the following settings:
The selected device is OS and hardware dependent.
Check the documentation on the Tams WEB Site.
