LoDi

ContentCommand Stations LokStoreDigital LoDi

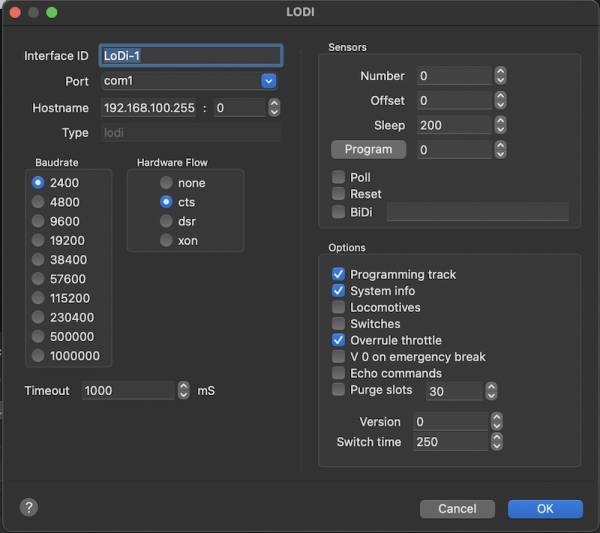

Setup

Note: Only the listed fields documented here are used from this dialog.

Interface ID

The ID of the LoDi system used in Rocrail.

Hostname

The base IP address.
Only the first 3 parts of the IP address are used as base for scanning and Node-ID prefix in Rocrail.
If left empty the IP of the computer is used on which the Rocrail server is running.


Addressing

Addressing is FLAT. The port value is not used und should be set to zero.

Node ID

The "Node ID" (former Bus) is used to set a specific LoDi node as last part of the IP address.
If the scanning has found all, Rektor/Shift-Commander/S88-Commander, the Node-ID can be left empty.


Example

SubNetMask 255.255.255.0
Router IP 192.168.1.1
Node ID 56
LoDi Node IP 192.168.1.56


ProgrammerFX

The LoDi ProgrammerFX should be used to setup the system.
