GCA97 LocoNet Hub

ContentHardwareGCA


By Peter Giling

Features

  • 3 D-SUB 9 male
  • 3 D-SUB 9 female
  • 1 RJ12 connector
  • Screw terminals for power supply 12-16V DC
  • Power LED

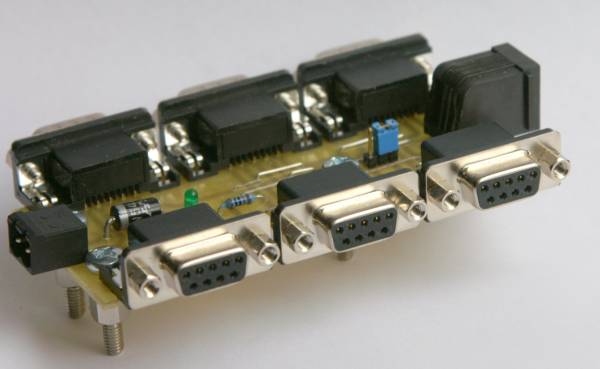

The Prototype

Hardware files

Remark: The board is drawn as a double layer type.

But that is not necessary.

The top layer (page 1) can be used as directive for the wire bridges.

See also picture of proto board.

Information on power supply options

The GCA Loconet is powered in a different way as standard LocoNet.

This is one of the reasons why different connectors are used.

The standard Loconet way of powering all connected units is by means of the Railsync lines.

These Railsync lines are connected to pins 2+5 (Railsync -) and 1+6 (Railsync plus) of the RJ12 connector J7.

The railsync power is coming from Digitrax central units like Zephyr and/or DCS100/200.

Also the Intellibox on connection LocoNet B feeds these Railsync lines.

Railsync power is also available on D-connectors at pins 2 and 4.

However this Railsync power is rather limited, specially in the case of Intellibox.

For this situation, an extra power input connector is available on GCA97.

This extra power input is not needed when GCA85 is used.

Junper JP1 is used for the following situations:

Digitrax Central or IB in system GCA85 in system Jumper Jp1 GCA97 connected Jumper Jp1 GCA85 connected Power to GCA97 (J8)
YES YES 1+2 NO NO
YES NO 1+2 YES
NO YES 2+3 YES NO
