Symbol Illumination

Introduction

All tests have been done with Rocrail Version 136 (29. Oct. 2019).

Here it should be shown which color a Rocrail track element shows in certain situations.
The Rocrail track element used within the following tests is marked here:

The test uses the standard SVG theme "SpDrS60".
The track element is a "straight.svg" ()
with its variations "straight-occ.svg" (), "straight-route.svg" () and "straight-shunt.svg" ().
Other SVG themes may be tested easily by the reader using the Rocrail workspace below.

The Test Parameters

Several parameters determine the color of track elements and therfore the presentation of routes:

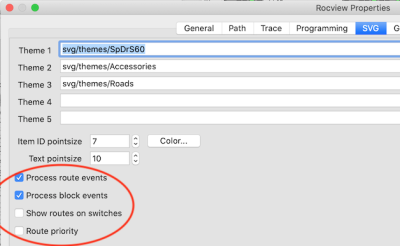

a) inside the Rocview Properties (the default values):
- ON = Process route events
- ON = Process block events
- OFF = Show routes on switches
- OFF = Route priority
These values were used as constant values during the test.


b) inside the track properties
b1) the "Block ID" and
b2) the "Sensor";


c) the corresponding sensor being active or not active.


d) loco with "Shunting" ON or OFF;

The Test Results

The tables below show the complete list of all value combinations of b1) b2) c) and d).
The Rocrail track element used within the tests is marked in the header of the tables.
The table is split into two parts.
Part one: there is no loco present within block "bk01":
the "hypothetical" combination 09 to 16 is included for completeness; "hypothetical" because of "no loco, no shunting".

b1) b2) c) d)
Track-Property Track-Property Sensor Loco Track
No. Block ID Sensor active Shunting Loco Color Picture
01 no no no no no gray
02 yes no no no no gray
03 no yes no no no gray
04 yes yes no no no gray
05 no no yes no no gray
06 yes no yes no no gray
07 no yes yes no no red
08 yes yes yes no no red
09 no no no yes no gray hypothetical
10 yes no no yes no gray hypothetical
11 no yes no yes no gray hypothetical
12 yes yes no yes no gray hypothetical
13 no no yes yes no gray hypothetical
14 yes no yes yes no gray hypothetical
15 no yes yes yes no red hypothetical
16 yes yes yes yes no red hypothetical

Part two: there is a loco present within block "bk01":

b1) b2) c) d)
Track-Property Track-Property Sensor Loco Track
No. Block ID Sensor active Shunting Loco Color Picture
17 no no no no yes yellow
18 yes no no no yes red
19 no yes no no yes yellow
20 yes yes no no yes red
21 no no yes no yes yellow
22 yes no yes no yes red
23 no yes yes no yes red
24 yes yes yes no yes red
25 no no no yes yes blue
26 yes no no yes yes red
27 no yes no yes yes blue
28 yes yes no yes yes red
29 no no yes yes yes blue
30 yes no yes yes yes red
31 no yes yes yes yes red
32 yes yes yes yes yes red

The Results Screenshot

As a summary all test results are shown here:

The Test Workspace

This Rocrail workspace has been used for testing: SymbolIllumination.zip
By pressing the "Start test" button all parameters will be set to show the documented results.
