Serial Turntable Communication
Introduction
This library can only be used with a serial turntable controller which has the STC protocol implemented.
The Rocrail definition must be set to protocol Multiport and Interface-ID pointing to this controller.

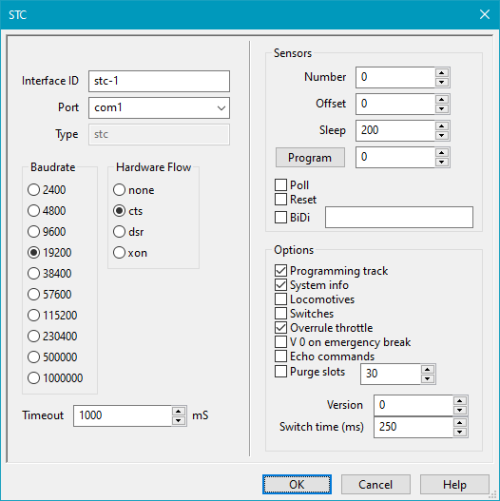

Setup
All parameters are ignored except for Interface ID, Port and Version.
Port
The serial device name connected to the STC.
Line settings
- 19200 bps
- 8 data bits
- 1 stop bit
- no parity
- hardware handshake (CTS)
Options
| Version | Turntable Type |
|---|---|
| 0 | Default |
| 1 | 48 tracks |
| 2 | 24 tracks |
| 3 | 24 tracks 15° |
Position sensor
If the end position has been reached it will be reported by sensor address 10001.
See: Position sensor
Initialise
A global power on will enable communication.
