DigitalBahn
Decoder
DigiTal-Bahn.de offers DIY electronics for variouse digital solutions. For turntables you can use the "Drehscheiben-Dekoder".
On the Digital-Bahn web site you will find all the information you need to convert your analog turntable into a digital one controlled by Rocrail.
Restrictions & Problems
- only 24 tracks addressable
- no position reached feedback. You have to add feedback sensors around the turntable and a magnet on one end of the bridge.
- needs at least one or two seconds pause between commands
- difficult to change track setup

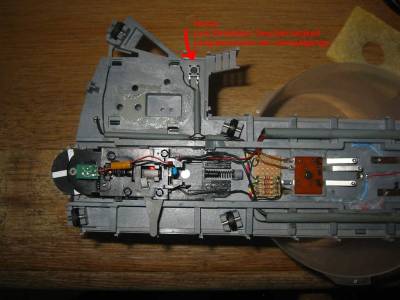

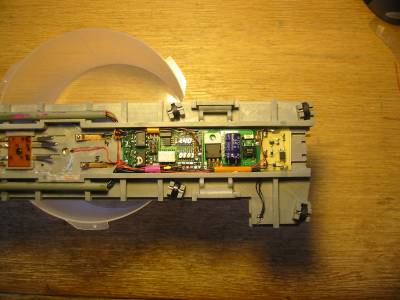

Capt Blaubär revision
| Description | Document |
|---|---|
| Wiring | tt-anschluss.pdf |
| Color table | tt-decoder-farben.pdf |
| Notifier diagram | tt-notify-plan.pdf |
| Notifier board | tt-notify-board.pdf |
| Bridge part of notifier | tt-down.pdf |
User documentation
- dsd2010-1-de.pdf (German)
- dsd2010-2-de.pdf (German)
