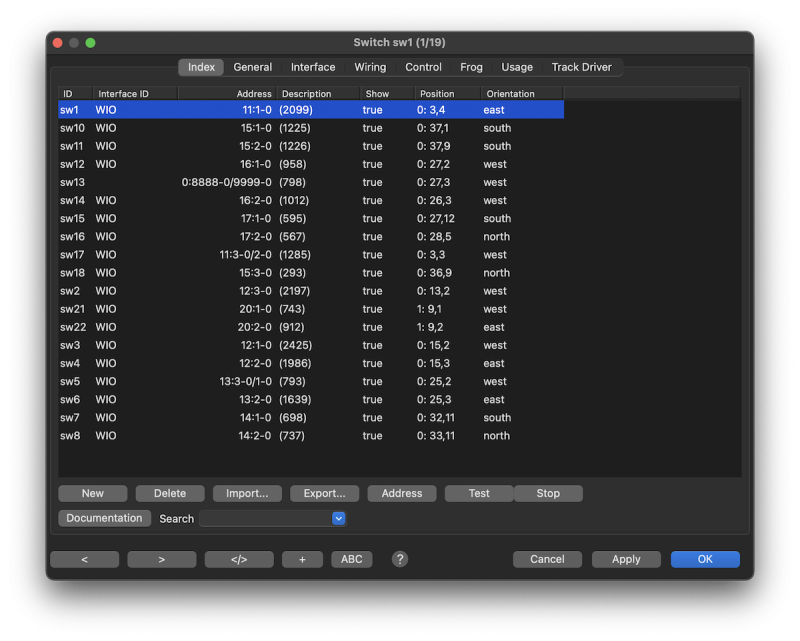

SwitchDialog Index Tab.

The description column show between brackets the number of switch motor movements.

Imports a .csv file of switches into the table. The separator must be a comma.
The header of the CSV file must contain the attribute names.

• Tip: A header line as a template can be created with an export file.

Creates a .csv file of switches from the table.

Automatically set the address for switches with address zero.
It will scan the list of switches to detect the highest address and will use that as offset.
This is only for use in case of virtual simulation.

Opens the default HTML browser to show a listing of all switches for printing.
See also: Reports

This toggle button starts the selected switch internal test function to flip every second or every control Delay this switch.
The button text will change to "Stop" after activating this function; Click on "Stop" to deactivate the internal test function.
