LocDialog CV's Tab

Description

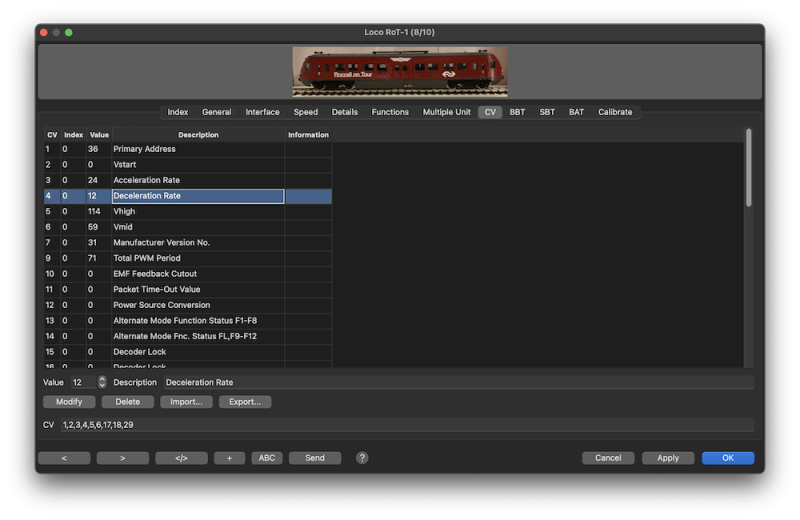

This tab shows all saved CV values for this locomotive. The CV descriptions are from NMRA.org: http://www.nmra.org/standards/DCC/standards_rps/rp922.html as far as they are not overwritten with the Modify command.

For further details see here: Loco programming dialog

Import

Deletes all CVs in this table and add the CVs from the file.

*.csv

Comma Separated Value file format:
cv<:index>,value,description,info
Example:

1,70,Address,The short address
2,3,Starting voltage
3,10,Starting delay
4,10,Breaking delay
29,42,Config,128 steps + Railcom + long address

Notes:

The description and info columns are optional.
Semicolons are also supported as separator.
The CV index should be formatted like: "cv:index".


*.txt

File format:
L/S CV VALUE DESCRIPTION
Example:

L 001 070 Adresse
L 002 003 Startspannung
L 003 001 Beschleunigungszeit

Notes:

Proprietary format.
This format is only valid with fixed columns at the right position.
