Rocview Programming
- Configuration | Locomotives Tab | Accelerators | Status Lights | Use multiple Gui's for viewing | Reports
- Language | General | Path | Programming | SVG Symbols | Clock | Gamepad support | MIC | Accelerators

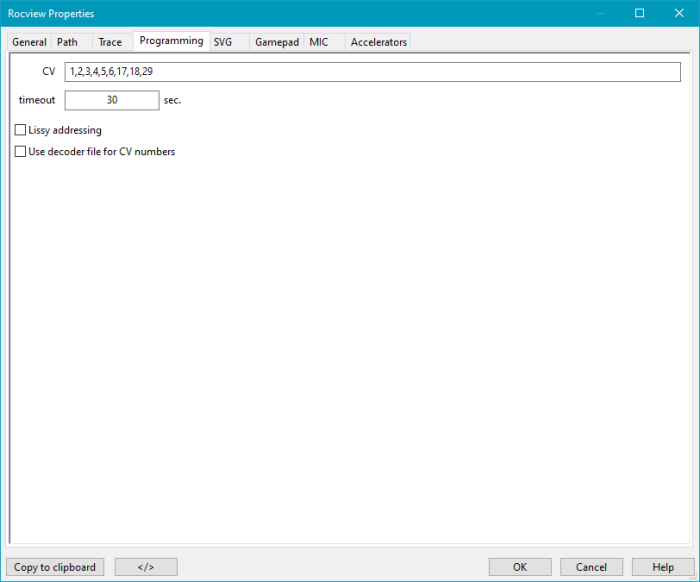

CV
This comma separated list is used for the Read All, Write All and Save All operations in the programming section of the Rocgui.
All CV's listed here are used for both operations.
In case of POM the CV 1, 17 and 18 should be not in this list.
Ranges can be defined for RocPro. A range is separated by a dash: "2,3,69-78,99"
Timeout
After this amount of seconds the Rocgui will enable the programming section again if no response was received from the Command Station regarding a programming command.
Lissy addressing
Program the Lissy transmitter simultaneously when setting the decoder address.
| Decoder | Lissy CV | Value |
|---|---|---|
| 1 | 116 | short address |
| 17 | 117 | long address high byte |
| 18 | 118 | long address low byte |
| 29 | 129 | configuration: 0=short, 32=long addressing |
LocoNet SV Tab
| Deprecated; No longer maintained, and no forum support. |
General way for setting LocoNet accessory decoder options.
CV
The default way of programming is using the CV (Uhlenbrock) mode.
Uncheck this option for using the SV (LocoIO) mode.
Use decoder file for CV numbers
The decoder files is used for the "Read All" function in RocPro.
Note
For more information see: PT Programming Track
