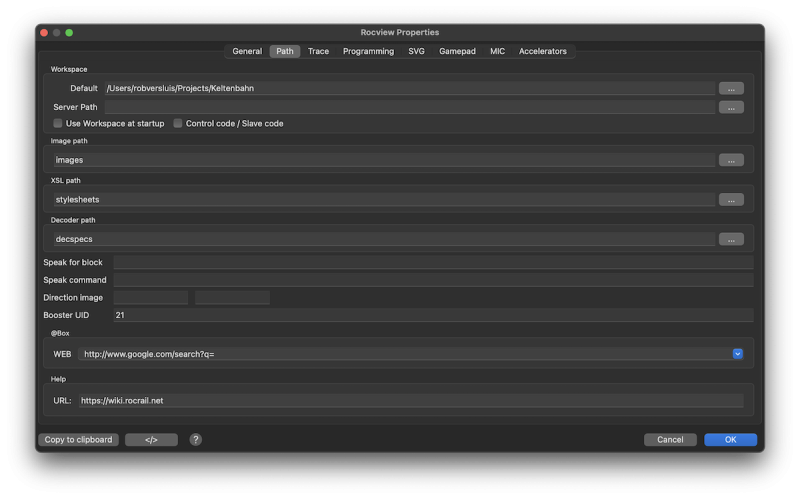

Rocview Path
-
- Language | General | Path | Trace | Programming | SVG Symbols | Clock | Gamepad support | MIC | Accelerators
Workspace
Default
This Workspace will be opened at startup if the following option is set.
Server path
This path is optional and can be used to point to the Rocrail Server and Libraries Path in case Rocview is not started with the Desktop link.
Use workspace at startup
If this option is actaivated the default Workspace will automatically opened at startup.
Control/Slave Code
Ask for the Control and Slave code for the opened WorkSpace.
Image path
Images are searched here. If not found a request is send to the Rocrail Server.
Note: Rocview uses the image found at its local path. To actualise an image from the server side it has to removed from this path first.
Icon path
User icons can be placed in this directory.
Rocview must be restarted to take effect.
Minimal icon size is 24x24 pixel.
Notes:
- The built-in icons are from IconDuck.
- User icons are on own risk and not supported.
| Icon filename | Remark | Built-in LightColor |
|---|---|---|
| abox.png | @Box |  |
| addnote.png |  |
|
| automode.png |  |
|
| clock.png |  |
|
| connect.png | Connect to a Rocrail server |  |
| delete.png |  |
|
| document.png |  |
|
| find.png |  |
|
| finish.png | Competition |  |
| forum.png |  |
|
| home.png |  |
|
| issue.png |  |
|
| lightctrl.png |  |
|
| locctrl.png | Loco throttle |  |
| manual.png | WiKi documentation |  |
| mic.png | Mouse throttle |  |
| monitor.png | Sensor monitor |  |
| new.png |  |
|
| off.png | size is 16x16 for Statusbar |  |
| on.png | size is 16x16 for Statusbar |  |
| open.png |  |
|
| operator.png | Trains |  |
| pause.png |  |
|
| play.png |  |
|
| plus.png |  |
|
| poweron.png |  |
|
| print.png |  |
|
| record.png |  |
|
| rocpro.png |  |
|
| routes.png | Route control dialog |  |
| save.png |  |
|
| smarthome.png |  |
|
| startall.png |  |
|
| stop.png |  |
|
| stopall.png |  |
|
| supportkey.png |  |
|
| swctrl.png | Switch control dialog |  |
| swstraight.png | Switch control dialog |  |
| swturnout.png | Switch control dialog |  |
| system.png | Open workspace |  |
| trace.png |  |
|
| undo.png |  |
|
| upload.png |  |
|
| view.png |  |
|
| weather.png |  |
|
| zoom.png |  |
|
| zoom2fit.png |  |
Windows toolbar
| Icon filename | Remark | Built-in LightColor |
|---|---|---|
| connect_disabled.png | Windows toolbar |  |
| system_disabled.png | Windows toolbar |  |
| open_disabled.png | Windows toolbar |  |
| undo_disabled.png | Windows toolbar |  |
| startall_disabled.png | Windows toolbar |  |
XSL path
Location to look for documentation stylesheets.
Decoder path
Used for:
- RocPro decoder definitions.
- BiDiB Product specification.
Speak for block
Comma separated list of block ID's for executing the speak command for dynamic text updates.
An "*" can be used as place holder for all blocks.
The screen shots shows "2", so only text updates for block ID "2" will be spoken.
Just extend the list like this: "2,5,6". And the client will speak for block "2", "5" and "6".
Speak command
The speak command for dynamic text updates. This command will be executed on the client (the machine where Rocview is running) when a text object is updated by a block listed in 'Speak for block'. The updated text is appended as parameter. For examples for scripts see Text->Speak to me.
To have the dynamic text spoken on the server see Text->Actions
Direction image
Optional direction images to be used in the loco tab throttle.
The file names must be defined complete (name.extension).
File location: image_path
File format: PNG with transparent background.
Booster UID
The status bar can only show one booster.
In case the system has more boosters this Unique ID can be used to select the wanted booster load in the status bar.
@Box WEB
The WEB search engine URL for the @Box.
The Combobox provides the following engines:
- Google
- Ecosia
- DuckDuckGo
- Yahoo
- Bing
