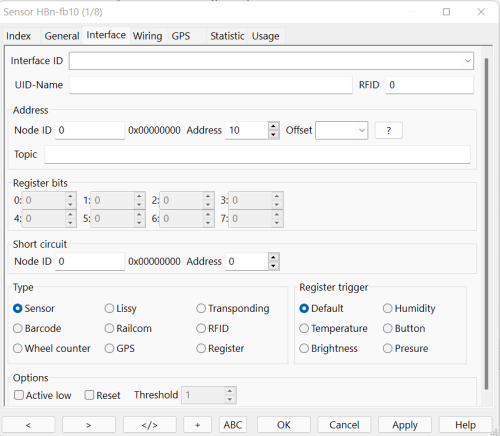

If more than one command station is used, then the command station that is responsible for controlling the sensor-decoder is specified in this field. The "Interface identifier" field can remain empty if the object is connected to the first command station (first 'digint' in rocrail.ini) from the list of command stations.
|Use with care! The UID is case sensitive and must match, otherwise the sensor event cannot be processed and will be lost.|
Alternative to the Node-ID supported by:
- BiDiB (String: Username)
The 32bit RFID number printed on the Tags. (Leading zeros can be left out.)
This can be used in combination with WIO-Drive and an ID-12LA reader.
All other addressing, like Node ID and Address, are ignored if the RFID did match. (But an additional fake address makes it possible to check the plan virtually.)
Example of the blue Tag scan:
OWIO 0885 Mobile 18 [BR218] RFID event [126.96.36.199.148]  OModel 5329 trying to match sensor event: [WIO] id=[188.8.131.52.148] 0:0 uidname= state=0 code=BR218 regval=0 info= OFBack 0796 fb[s18-] state=ON code=BR218 dir=0 val=0 count=5 regval=0
Sensors have flat addresses in Rocrail as described in chapter Addressing
Note: Generally a sensor needs an address, exceptions are virtual sensors
Address setting using the sensor-monitor
The most elegant address setting works by using the sensor-monitor or by clicking on the [ ? ] Button
- Driving a loco around the layout every sensor event is reported in the sensor-monitor.
- Just drag the shown address of the reported sensor with the mouse and drop it on the right sensor object in the plan.
- With this action this address is written in the object interface definition.
|Only for small layouts because of performance penalty.|
Optional, not supported, offset variable.
The value of the variable will be added to the sensor address.
This can be of use in case of sensor systems, like S88, and modular layouts. Only for each sensor module the variable value has to be changed instead of changing all sensor addresses. (Mostly 16 per unit.)
[ ? ]
Selecting the [ ? ] activates the Sensor Monitor
Optional for sensor type register only.
If the used Command Station does not natively support register sensor, it can be simulated with max. 8 register bits.
A register bit is just an address of a normal sensor. The register value is after every change event of one of the bits re-calculated.
The register value can be used for turntable position or action control: regval.
Optional cutout address for detecting a short circuit in this section.
Server message on short circuit:
20120617.082116.315 r9999E cmdr1016 OFBack 0367 Sensor [fb3b] report: SHORT CIRCUIT detected
|0||Current sensors||-||Most commonly used; Can also report bi-directional information; Also for Hall Sensors when not used as wheel counters.|
|1||IR Lissy||Uhlenbrock||Can be used with the Off timer to get it unoccupied.|
|2||Transponding receivers||Digitrax||Not used; Same as type=0.|
|3||Barcode||BarJut||Not used; Same as type=0.|
|4||RailCom||-||Not used; Same as type=0.|
|5||RFID||MERG, LDT||Not used; Same as type=0.|
|6||Wheel counter|| GCA173, GCA179 and GCA141 |
for Hall sensors and Reed contacts.
|Used for wheel or car counting.|
|7||GPS||GamesOnTrack||Using the GPS coordinates on the GPS tab.|
|8||Register||-||Can be used for Turntable position sensor.|
Read Bi-Directional Communication for more information on this topic.
Specifies the physical quantity for which the value represented by the register bits is defined.
Sensor has the signal inverted and can be reverted with this option.
|Attention : The sensor address in this case must not be the same as the one of an existing switch!|
The minimal value to signal the sensor high in case of type register.
For the assignment of addresses to sensor\feedback in the track plan, there is help with Sensor Monitor
